How to Use Twigs
What is a twig
A twig is a 3D model that represents the latest flush of growth – a small branch with leaves. Twigs are distributed at branch ends to add incredible realism to your trees. You can use any polygonal object as a twig, and this makes the twig system very flexible. The twig models sold on this site capture a lot of detail, but you can just as well use you own low polygon geometry or even single leaves.
Pick a twig
To add to twigs to your tree, simply pick one from the twigs menu in the Twig panel. You can use any 3D object from your scene, a collection of objects, or pick a twig from your library. The twigs menu lists all twigs it can find in your library folder.
Ater you installed The Grove, it’s time to create a folder to keep all twigs together. Let’s call this folder TwigsLibrary – you can place it anywhere you like, and then point to this folder in The Grove’s user preferences. When you purchase a twig, simply unzip it to the library folder.
As an example, let’s presume you purchase an ash twig and an elm twig. After a correct installation, your twigs folder will have two sub folders called AshTwig and FieldElmTwig. Each of these will contain the .blend files for the twigs and each of them will have a separate textures folder. So each twig has it’s own folder with its own textures, keep it that way. The Grove will automatically find the two twigs and you can add them to your trees from the twigs menu.
Twigs and presets are two completely separate things – you can use any twig on any preset. This is an important concept, and it takes very little effort to adjust the preset to a different twig. Of course it would look silly to use a walnut twig on a pine preset, but with some common sense you can use a single twig on more than one preset.
The first thing to do when picking a twig for your tree is to adjust the preset to match the size of the twig. For instance the Paper Birch twig comes in several variations, one covering a bigger branch than the other. So after picking a twig, adjust Simulate > Scale to make it look right. You may also have to tweak Twig > Density.
Create your own twigs
You can use any 3D object as a twig by setting the twig picker menu to Scene Objects. Then pick objects from the scene for the end and side twigs.
There are just two things to keep in mind when using an object as a twig. First, its origin (pivot point) should be at the start of the branch. To do this, first place the 3D cursor at the start of the branch. Then press the space bar and search for Set Origin and click it. Then select Origin to 3D Cursor.
Second, the Grove assumes the branch is pointing in the direction of the X-axis. This means that when you are in top view, the base of the branch should be on the left, and it should be growing out to the right. When you’ve got the twig pointing in the right direction, you have to apply its rotation and scale by pressing Ctrl+A and picking Rotation & Scale.
If you’ve created a twig yourself, you may want to list it in the twigs menu so that you can use it in other scenes. You can do this by saving a clean .blend file with just the twigs in the folder that you configured in the user preferences. There is a simple naming convention to follow. You can name your e ndtwig any way you want, but make sure to end the name with EndTwig in the name. Same for side twigs, end the name with SideTwig. And optionally an UpwardTwig and DeadTwig. If you have a single twig to be used for both the side and end twig, you can just end the name with Twig.
You can also create several twig variations and group them in collections. In that case, end the collection names with EndTwigs, SideTwigs, UpwardTwigs and DeadTwigs. Make sure these collections are all first level collections linked directly to the scene collection.

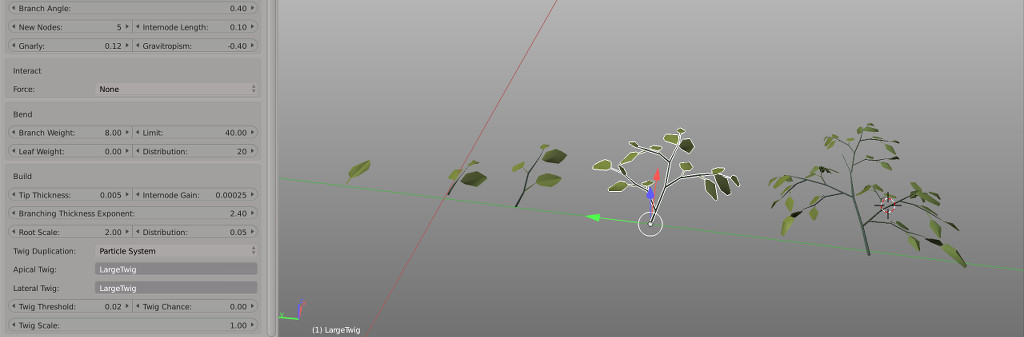

Simple twig starter pack
To get you started, here is a small selection of extremely simple twig models that was used early on in development. They have no textures and their geometry is very crude. Play around with these twigs to see how twigs of different sizes work and how even simple twigs can have a high impact. For these simple twigs, you will want to set the Viewport Detail to 1.0, or you will get funky geometry.
Download the pack of simple twigs.
To learn more about twigs and how to distribute them, read Build.
